CC495K /CuSn10Pb10

Leaded tinbronze.

Due to the high lead (Pb) content and a decreasing demand, we no longer stock this alloy. CuPb10Sn10 is normally replaced by alloy Rg7, which is an alloy with similar characteristic and performance despite lower lead-content.

Leaded tinbronzes are still available – in limited size-range – and can be offered or supplied upon request.

This goes for CuPb10Sn as well as CuPb15Sn which is the standard outside Scandinavia.

Shapes & forms

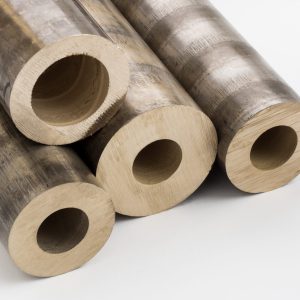

Tubes, solid round bar and flat bar






Category:

Description

Chemical composition (nom.)
– Cu 78-82 %
– Pb 8-11 %
– Sn 9-11 %

Max. impurities
– Ni 2,0 % (can be part of the Cu-content)
– P 0,05 %
– Zn 2,0 %
– S 0,10 %
– Fe 0,25 %
– Mn 0,2 %
– Al 0,01 %
– Si 0,01 %
– Sb 0,5 %

Mechanical properties (nom.)

Yield strength (Rp N/mm²): 105-140 N/mm²

Tensile strength (Rm N/mm²): 210-255 N/mm²

Elongation in % A 5: 8-14%
Hardness/Brinell: ≥ 70 HB                                                                                           Density ∼ 8.9
Mating material: Min. surface hardness 200 HB. Rec. surface roughness <1 Ra

Characteristics                                                                                                           The material is not suitable for welding. The material is suitable for soldering and brazing. The material is also suitable for bonding.

Additional information

C 93700, CC495K, Cu Pb10 Sn, Cu Sn10 Pb10, JM 5, LB2, NS 16540, SAE 64, SAE 797, U-E 10 Pb 10
